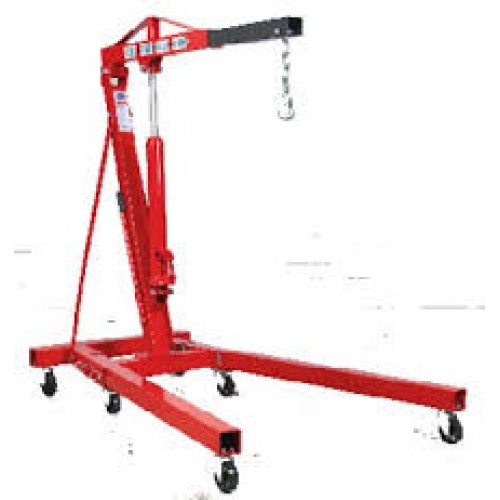

Mobile folding crane 1000 kg.
The folding crane is a portable device designed for moving and lifting loads.
The most common areas of application are: rigging, loading and unloading, installation of equipment, installation and dismantling of automotive engines,
Movable crane with the ability to fold, making it easy to transport and store.
Durable wheels, light weight.
Lifting capacity in 1: 1000 kg Load capacity in position 2: 750 kg
Lifting capacity 3: 500 kg
Lift power at 4: 250 kg
Max lifting height with minimum elongation of the hand: 1765 mm
Max lifting height with maximum arm extension 2060 mm
Shoulder length 1: 923 mm
Shoulder length 2: 944 mm
Shoulder length 3: 1062 mm
Shoulder length 4: 1182 mm
Frame height: 190 mm
Frame length: 1640 mm
Maximum frame width: 1014 mm
Frame width: 878 mm
Rear Wheel Center Distance: 640 mm
Weight: 77 kg
Mobile folding crane, 1000 kg. 032-А
- Product Code: 032-А
- Availability: In Stock
-
669.60лв
